Majesty 48

majesty48_banner_960_1
Length overall 49 ft 2 in (14.98 m)

Length waterline 40 ft 8 in (12.41 m)

Beam 16 ft 5 in (4.995 m)

Draft 3 ft 1 in (0.935 m)

Displacement 20 t approximately

Fuel capacity 400 US gal (1,514.16 l)

Fresh water capacity 100 US gal (378.54 l)

Black water capacity 20.3 US gal (77 l)

Grey water capacity 20.3 US gal (77 l)

Generator Kohler, 11 kW, 50 Hz

Engines Cummins 2 x QSB 6.7 M 550 hp @ 3300 rpm (HOD)

Specifications Overview

  • Power assisted electro hydraulic steering system
  • Bow thruster 6 hp, 24 VDC
  • 24 VDC and 220 VAC electrical system
  • 220 VAC, 50 Hz, single phase shore power dock side connection
  • 11 kW, 220 VAC, 50 Hz generator
  • Anchor 20 kg with chain length 50 m, 10 mm diameter
  • Anchor winch 1500 W capacity
  • Dual station electric anchor winch controls
  • Dual station electric trim tabs with indicators
  • Electric toilets
  • Search light with dual station controls
  • Self contained air conditioning system with total capacity 83,000 Btu
  • Saloon 32″ LED TV / DVD player system
  • Owner’s cabin 32″ LED TV / DVD player system
  • Stainless steel transom door
  • Stainless steel railings
  • Powder coated aluminum framed saloon door
  • Round shape portholes
  • 6 x stainless steel deck cleats
  • Electric water heater 50 l capacity
  • Water maker 70 l/hr capacity
  • Fixed fire extinguishing system for the engine room and generator room

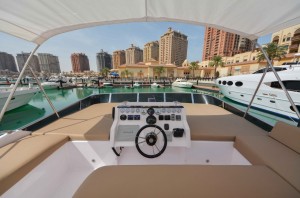

  • Fly-bridge upholstered sofa seats and table
  • Teak decking on swim platform and cockpit
  • Life raft 6 persons
  • Sun top with canvas
  • 4 x under water lights

Construction

  • The hull and deck are made out of a single piece GRP mould, built from combination of chopped strand mat, bi-directional knit fabric and balsa core hand-laminate under controlled temperatures with isopathalic polyester resin
  • The hull and deck exterior have got mirror glaze gel-coat finish
  • All materials used in the construction are approved marine quality
  • Solid fiberglass laminate on keel and chines
  • Hull bottom is finished and painted with antifouling paint

Deck fittings

  • Electric anchor winch with fore deck, main helm and fly-bridge controls
  • Stainless steel bow roller for anchor launch and retrieve
  • Anchor 20 kg with 50 m length, diameter 10 mm of chain
  • Anchor winch 1500 W capacity
  • Deck hatch access to chain locker
  • Foredeck hatch to VIP cabin
  • Full set of navigation lights
  • Search light with dual station controls
  • Single trumpet electric horn
  • 6 x stainless steel deck cleats
  • Stainless steel railings
  • Side windows
  • Front wind screen
  • Windscreen wipers with fresh water wash system
  • Forward sun bed

Aft cockpit

  • Lockable gas strut assisted hatch to generator/engine room
  • Stainless steel transom door leading to swim platform
  • Self draining
  • Upholstered seating and table
  • Cockpit ceiling lighting
  • Deck lights
  • Stainless steel handrails
  • Manual swim ladder at swim platform
  • Deck wash
  • Ladder with teak steps to flybridge
  • Access door to crew cabin
  • Recessed locker for house and generator battery switches
  • Recessed locker for fixed fire extinguishers and fuel shut-off valve pull handles
